Manual stacker
1000 kg load, 85-3000 mm lift height
Art. no.: 15-2533
- 1000 kg capacity
- Lifts from 85 to 3000 mm
- 550 mm width over forks
This product is no longer available.
See all Stacker trucks hereAvailability
Loading delivery time...
Warranty of 7 years

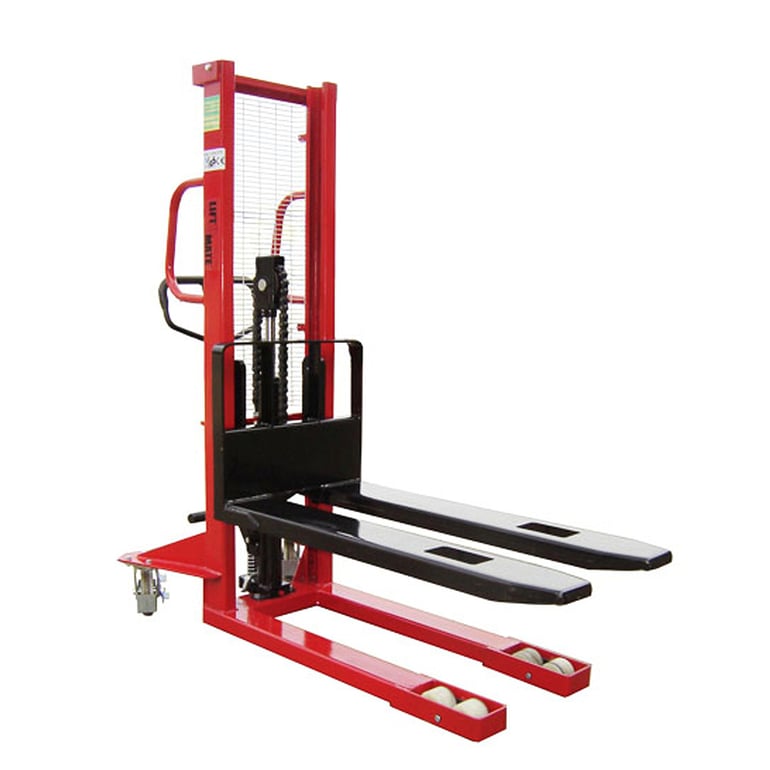

Manual stacker ideal for lifting and transporting pallets when space is tight or if the need for pallet moving is less frequent. Fitted with 360° steering wheels and tandem fork wheels, all nylon. It comes with a pump handle and foot pedal for optional step-on operation.
Product information
Manufactured from robust steel profiles and fitted with 360° steering wheels (Ø 150 mm), this manual stacker truck is easy to manoeuvre in tight spaces. You can operate it using either the pump handles or foot pump. The fixed width forks are able to lift loads of up to 1000 kg from 85 mm up to three metres.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
Manufactured from robust steel profiles and fitted with 360° steering wheels (Ø 150 mm), this manual stacker truck is easy to manoeuvre in tight spaces. You can operate it using either the pump handles or foot pump. The fixed width forks are able to lift loads of up to 1000 kg from 85 mm up to three metres.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
Documents
Product specifications
- Length:1640 mm
- Height:2080 mm
- Width:840 mm
- Frame height min/max:2080 mm
- Lift height:85-3000 mm
- Fork length:1100 mm
- Width over forks:550 mm
- Lift speed:25 mm/sec
- Colour:Red
- Material:Steel
- Load capacity:1000 kg
- Steering wheel:Nylon
- Fork wheels:Tandem nylon
- Weight:307 kg
- Assembly:Assembled
