Complete skate set
36,000 kg load
Art. no.: 15-4376
- Dolly + 1 adjustable skate pair
- 36 tonne capacity
- 24 x steel wheels
This product is no longer available.
See all Machine skates hereAvailability
Loading delivery time...
Warranty of 7 years

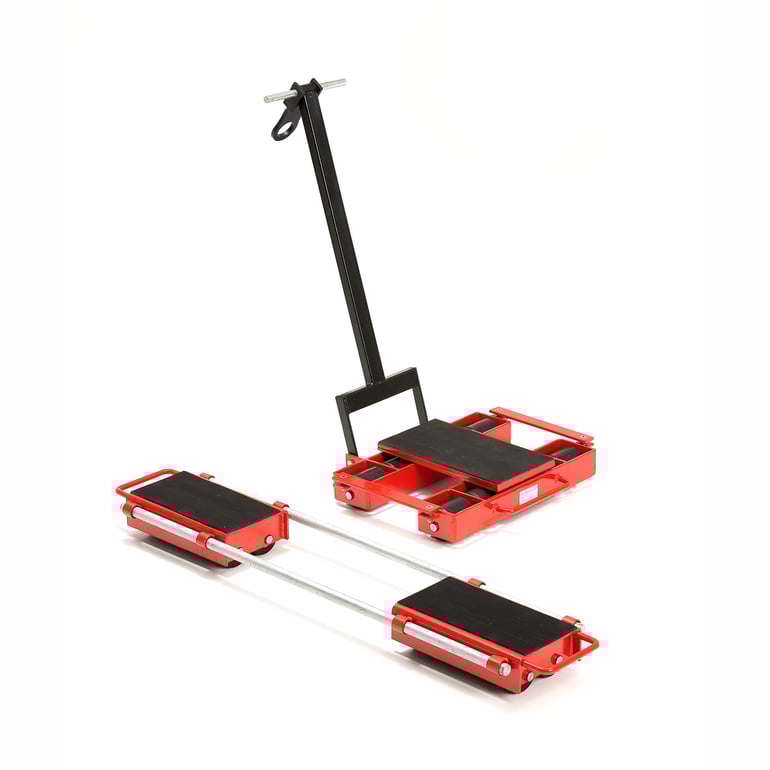

Practical skate set consisting of one steerable transport dolly and two machine skates with linking bars for moving large and heavy objects or machinery.
Product information
This practical, all-round solution comprises:
1 x steerable transport dolly: load capacity = 12,000 kg; size = L 630 x W 400 x H 115 mm (+1000 mm handle); weight = 66 kg
1 x adjustable skate pair: load capacity = 24,000 kg; size (each skate) = L 360 x W 220 x H 115 mm; distance between skates = 720-1500 mm; weight = 65 kg
The skate set is designed to make it very easy for you to move and control exceptionally heavy loads such as large pieces of machinery and equipment. Ideal for industrial environments. The skates and the dolly have a non-slip rubber surface designed to prevent the load from slipping and to protect it while in transit. All are fitted with Ø 83 x W 85 mm steel wheels (eight on the dolly and eight on each skate). The load can be lifted onto the units using a hydraulic jack for heavy loads or a crowbar for lighter loads.
1 x steerable transport dolly: load capacity = 12,000 kg; size = L 630 x W 400 x H 115 mm (+1000 mm handle); weight = 66 kg
1 x adjustable skate pair: load capacity = 24,000 kg; size (each skate) = L 360 x W 220 x H 115 mm; distance between skates = 720-1500 mm; weight = 65 kg
The skate set is designed to make it very easy for you to move and control exceptionally heavy loads such as large pieces of machinery and equipment. Ideal for industrial environments. The skates and the dolly have a non-slip rubber surface designed to prevent the load from slipping and to protect it while in transit. All are fitted with Ø 83 x W 85 mm steel wheels (eight on the dolly and eight on each skate). The load can be lifted onto the units using a hydraulic jack for heavy loads or a crowbar for lighter loads.
This practical, all-round solution comprises:
1 x steerable transport dolly: load capacity = 12,000 kg; size = L 630 x W 400 x H 115 mm (+1000 mm handle); weight = 66 kg
1 x adjustable skate pair: load capacity = 24,000 kg; size (each skate) = L 360 x W 220 x H 115 mm; distance between skates = 720-1500 mm; weight = 65 kg
The skate set is designed to make it very easy for you to move and control exceptionally heavy loads such as large pieces of machinery and equipment. Ideal for industrial environments. The skates and the dolly have a non-slip rubber surface designed to prevent the load from slipping and to protect it while in transit. All are fitted with Ø 83 x W 85 mm steel wheels (eight on the dolly and eight on each skate). The load can be lifted onto the units using a hydraulic jack for heavy loads or a crowbar for lighter loads.
1 x steerable transport dolly: load capacity = 12,000 kg; size = L 630 x W 400 x H 115 mm (+1000 mm handle); weight = 66 kg
1 x adjustable skate pair: load capacity = 24,000 kg; size (each skate) = L 360 x W 220 x H 115 mm; distance between skates = 720-1500 mm; weight = 65 kg
The skate set is designed to make it very easy for you to move and control exceptionally heavy loads such as large pieces of machinery and equipment. Ideal for industrial environments. The skates and the dolly have a non-slip rubber surface designed to prevent the load from slipping and to protect it while in transit. All are fitted with Ø 83 x W 85 mm steel wheels (eight on the dolly and eight on each skate). The load can be lifted onto the units using a hydraulic jack for heavy loads or a crowbar for lighter loads.
Documents
Product specifications
- Height:115 mm
- Wheel diameter:83 mm
- Colour:Red
- Material:Steel
- Platform material:Rubber
- Number of fixed wheels:24
- Load capacity:36000 kg
- Tyre tread:Steel
- Turnable:Yes
- Weight:131 kg
- Assembly:Assembled
